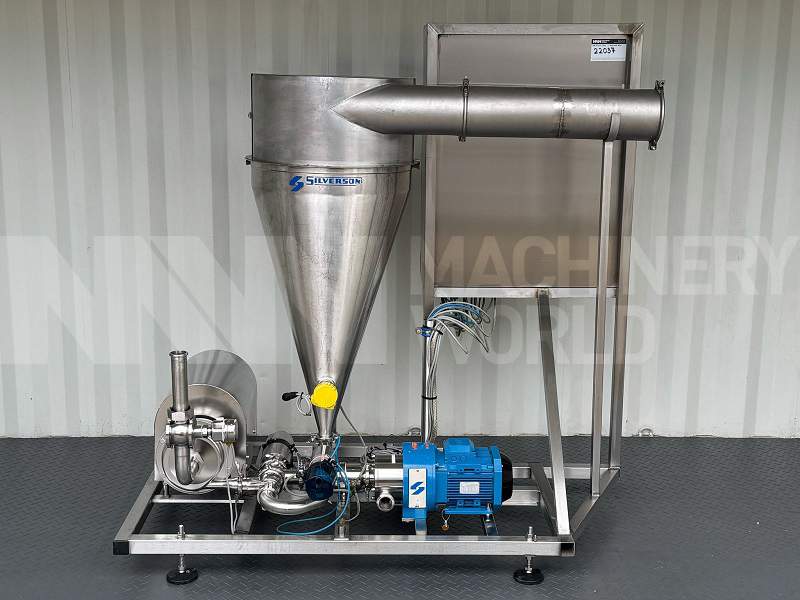

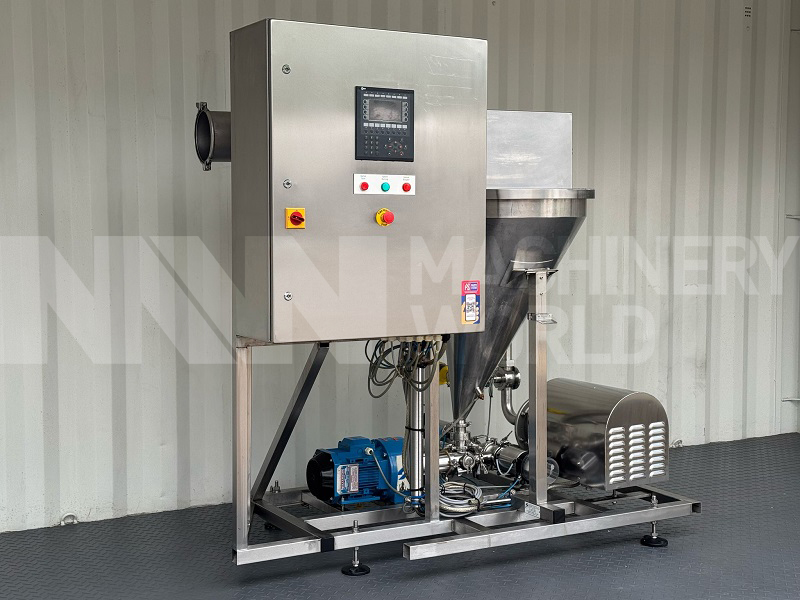

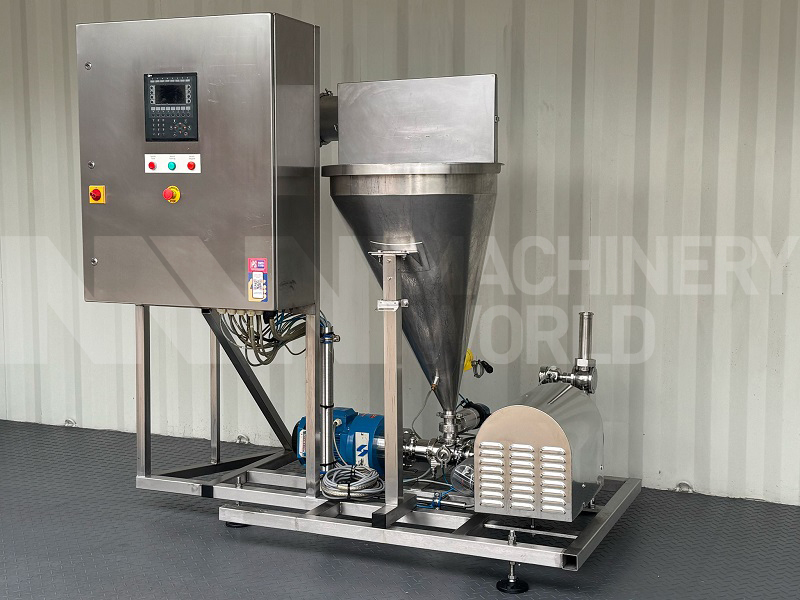

Silverson FLB30S Flashblend Powder-Liquid Inline High Shear Mixer Blender Dissolver

Description

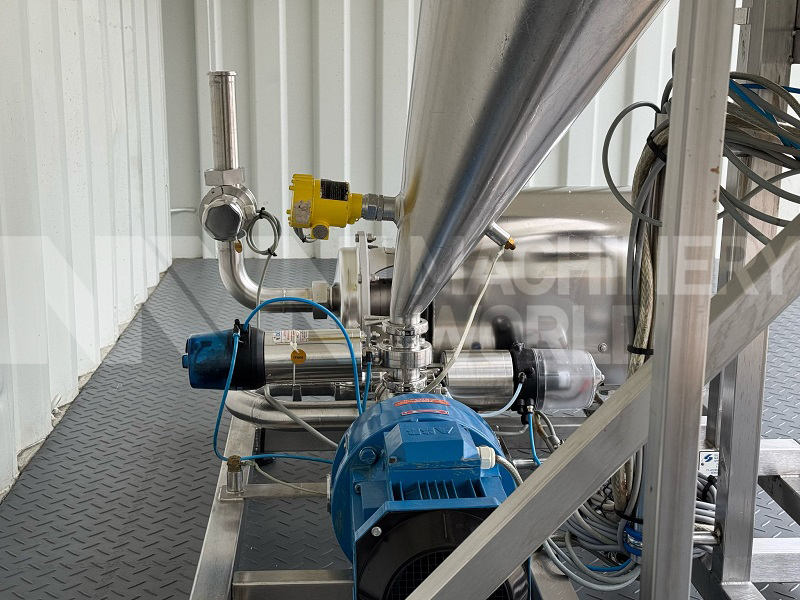

This is a pre-owned Silverson FLB30S Inline High Shear Mixer Dissolver. The Silverson FLB30S Inline High Shear Mixer Dissolvers are designed to handle a recommended powder feed capacity flow rate of approximately 3,000 kg per hour, although this may vary based on the type of powder and the solubility of the liquid being processed. The Silverson FLB30S Flashblend Inline High Shear Mixer Dissolver is engineered to quickly incorporate powders into liquids. It is capable of processing a variety of powders that yield low-viscosity liquids when dissolved, resulting in a viscous gel. The Silverson FLB30S Flashblend Inline High Shear Mixer Dissolver includes the following components: 1) Silverson Inline High Shear Mixer, 2) Packo FP2/32-160 Centrifugal Pump, 3) Blend Injector or Venturi, 4) Powder Hopper with Level Probe, 5) Pneumatically Operated Actuated Butterfly Valve, 6) Pneumatically Operated Actuated Divert Valve for CIP Mode, and 7) Electrical Control Panel with Allen Bradley PLC & Mitsubishi E600 HMI Display. This used Silverson FLB30S Inline High Shear Mixer Dissolver is available for immediate purchase. Please note that the downloadable brochure available via the ‘Technical Doc’ link and the specifications provided below are for informational purposes only, as stated in the manufacturer’s brochure, and the actual performance and efficiency of the machine may differ.

Specification

• Make: Silverson Machines Ltd
• Type: Flashblend FLB30S
• Model: Flashblend Inline High Shear Mixer Dissolver

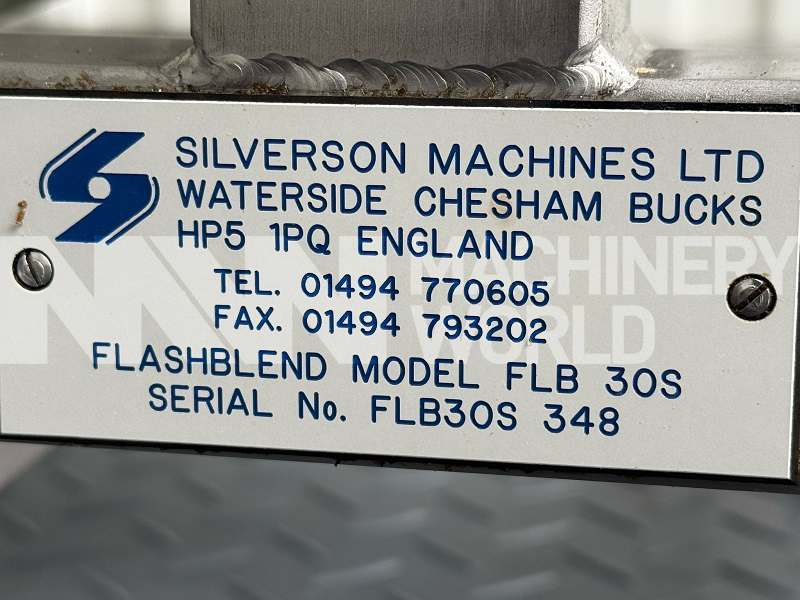

• Serial Number: FLB30S 348
• Construction: 316 grade Stainless Steel Product Contact Parts
• Typical Powder Flow Rate: 3,000kg per hour (Varies depending on the type of powder and solubility of the liquid being pumped through)
• Nominal Flow rate during Mixing Operation: Approx. 18,000 LPH
• Nominal Flow rate during CIP Cleaning Operation: Approx. 32,000 LPH

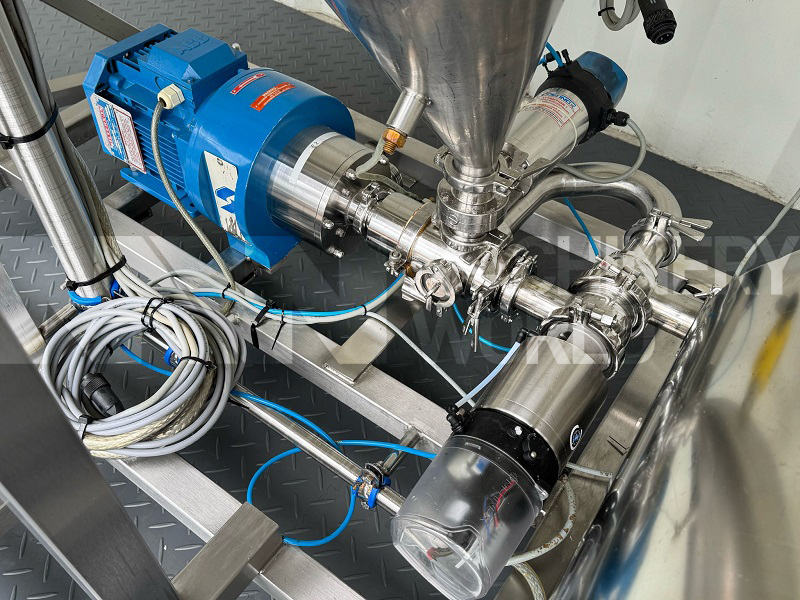

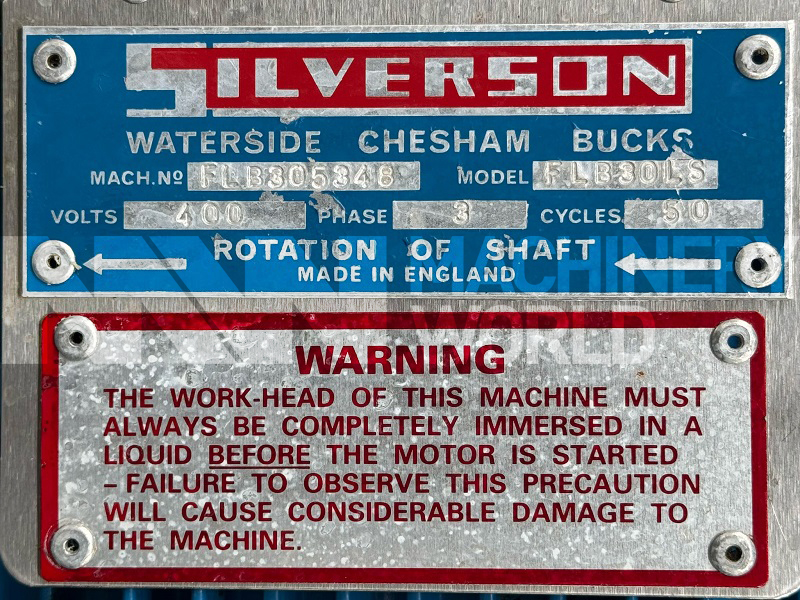

• Inline High Shear Mixer: Silverson FLB60LS, Machine No: FLB305348

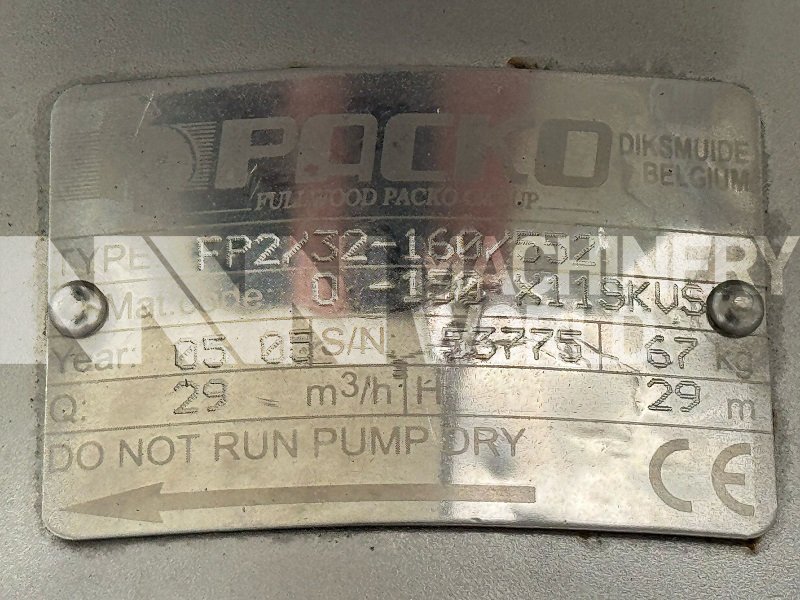

• Centrifugal Pump: Packo FP2/32-160/552, Serial No: 532775, Flowrate: Approx 29,000 LPH
• Motor Power:

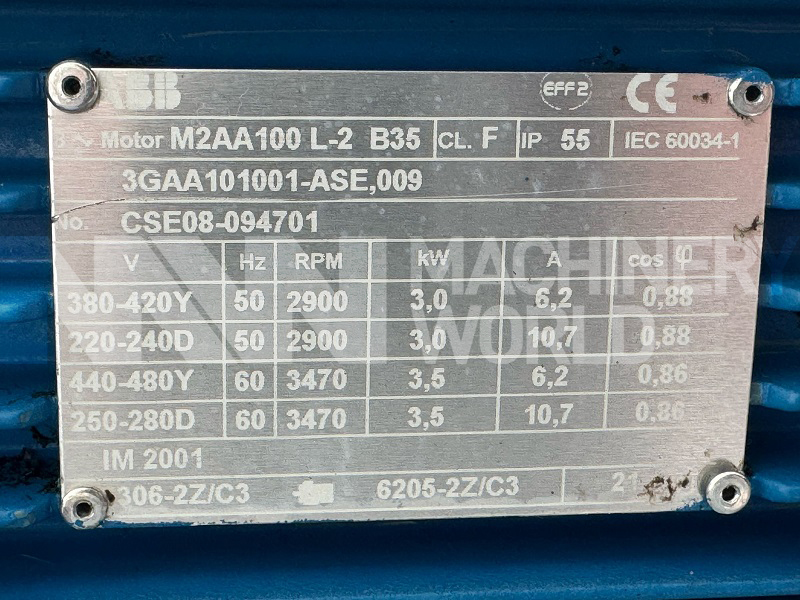

  Silverson Inline High Shear: 3kw, 3-ph, 50/60Hz
  Centrifugal Re-circulation Pump: 10HP (7.5kw), 230/460V, 3500RPM & 60Hz

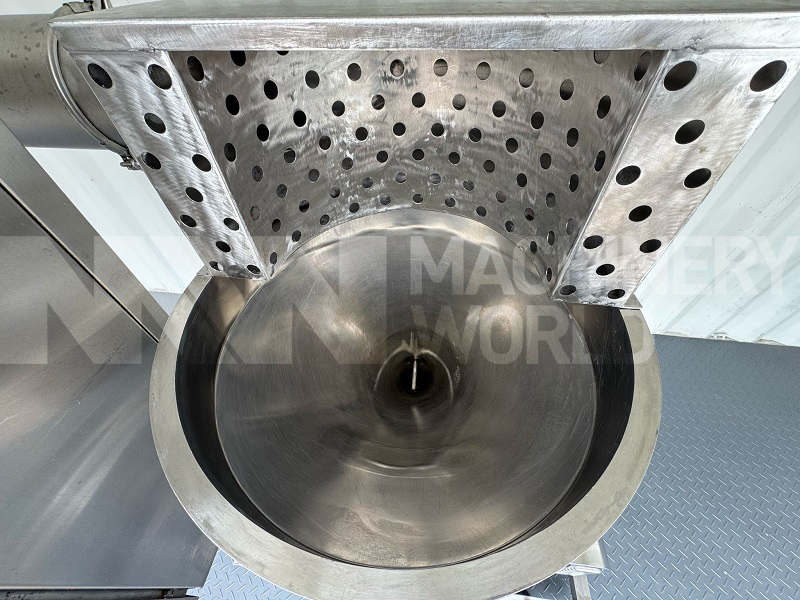

• Standard Hopper Volume: Approx. 100 Litres (Comes with Dust Extraction Hood)

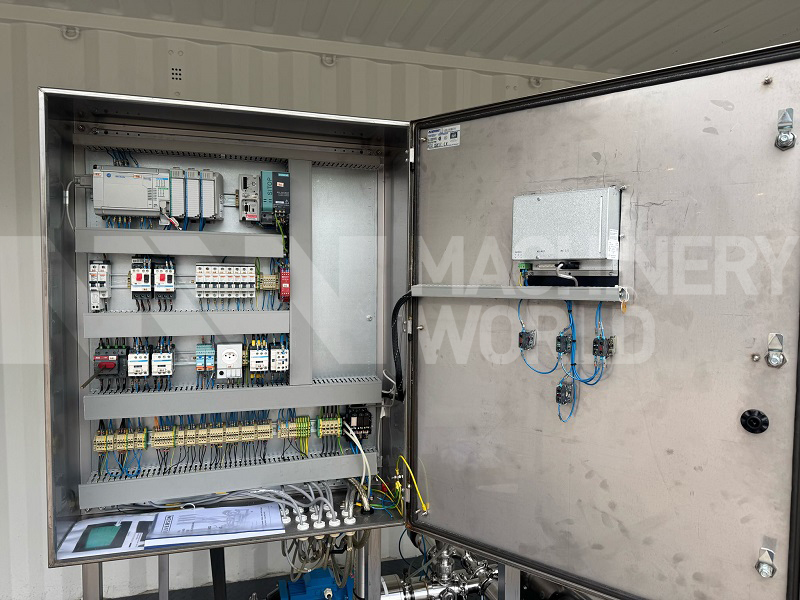

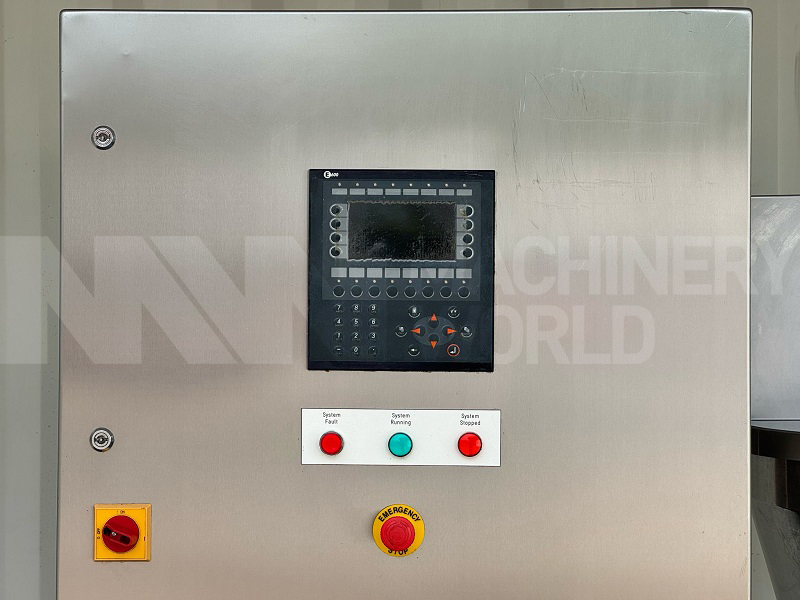

• Control Panel: Comes Fully Integrated with Allen Bradley PLC and Mitsubishi E600 HMI Display Screen
• Additional Details: Silverson Flashblend Mixer comes built on Stainless Steel Skid.

Dimensions

• Length: 1840mm
• Width: 1000mm
• Overall Height: 1870mm
• Height to Top of Hopper: 1380mm

Country of Manufacture

England
