ROKK RR 3800 Ice Cream Rotary Filling Machine for 125ml & 500ml CUP (Year 2017)

Request Price

IN STOCK AVAILABLE TODAY

SKU: 22207 Categories: , Tag:
DescriptionROKK Processing Authorised Distributor

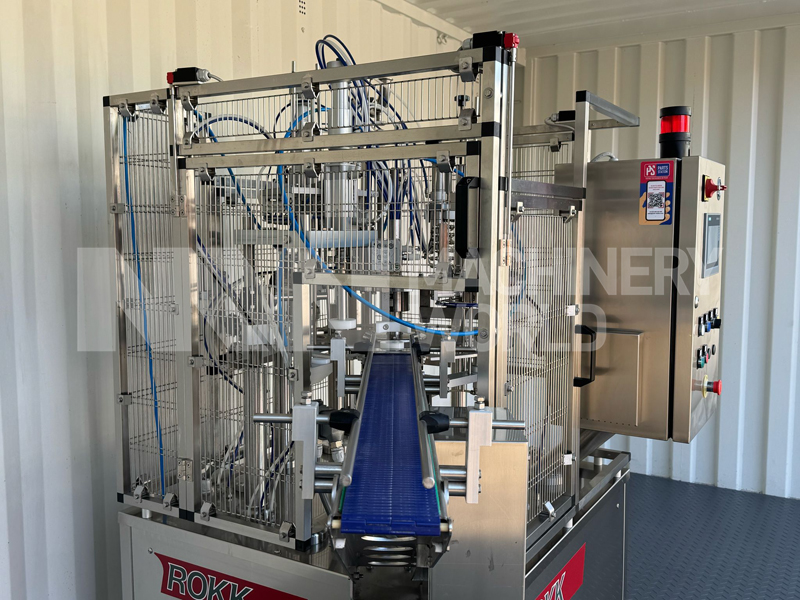

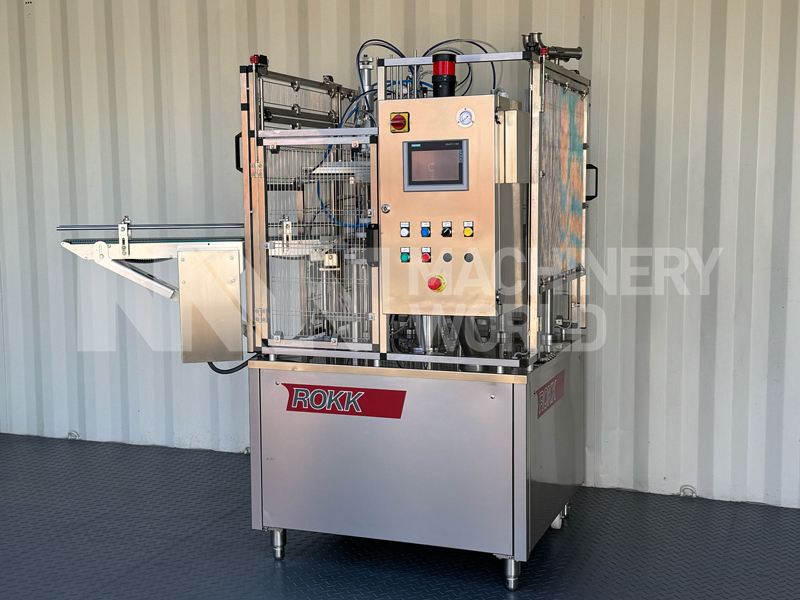

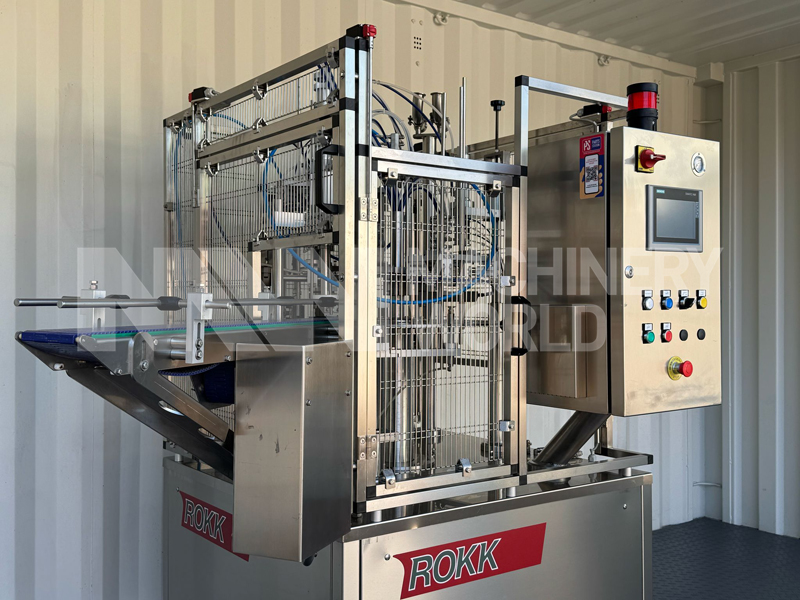

This pre-owned RR 3800 Fully Automatic Ice Cream Rotary Filler, manufactured by ROKK Processing in 2017, is available in excellent condition. The machine comes with two sets of change parts, designed for 64mm diameter cups (approximately 125ml) and 90mm diameter cups (approximately 500ml) with heat seal. It has been sparingly used and was purchased from a German based ice cream producer.

The RR 3800 is a formidable rotary ice cream filling machine, capable of facilitating up to 3,800 units (per row) every hour for a standard cup or 2,400 units (per row) every hour if applying the heat seal. With adjustable fill volumes of between 50ml and 1litre and a mechanical drive system that uses a combination of standard gearboxes and bespoke lift cams to ensure an accurate movement, the RR 3800 is an extremely versatile machine that will have a positive impact on even the smoothest of production lines.

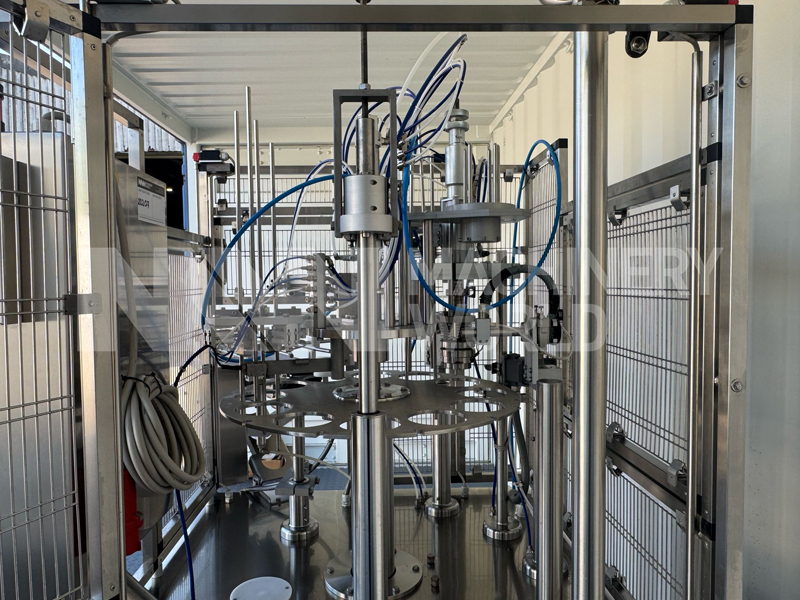

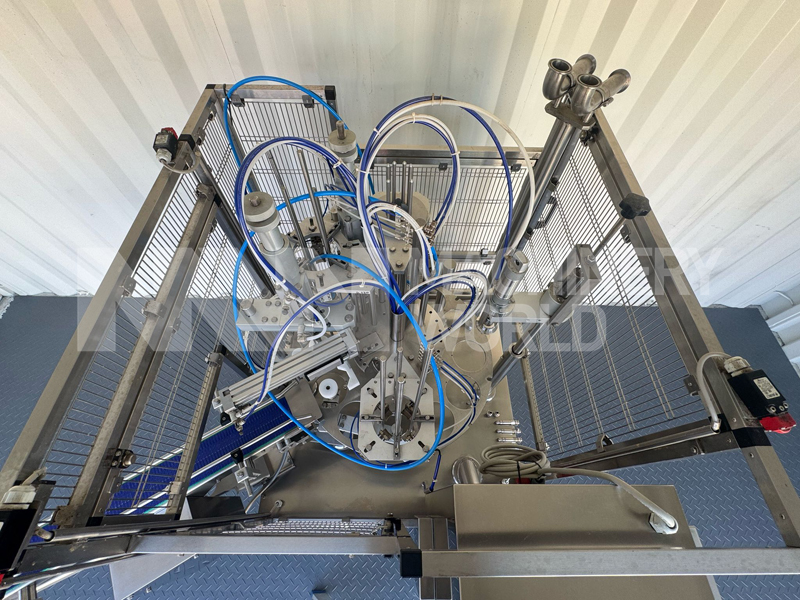

The filling assembly of the RR 3800 rotary ice cream filling machine is also easily adaptable to suit individual needs and can be fitted with a wide range of nozzles suitable for ripples, inclusions and a multitude of other options including colour separation.

Other change parts for other size packaging are available upon request for an additional cost.

Features
  • Manufacturer: ROKK Processing
  • Model: RR 3800
  • Function: Rotary ice cream tub filler
  • Serial number: 002238-17
  • Year of construction: 2017
  • Capacity: 2,400 pieces/per hour (with heat seal)

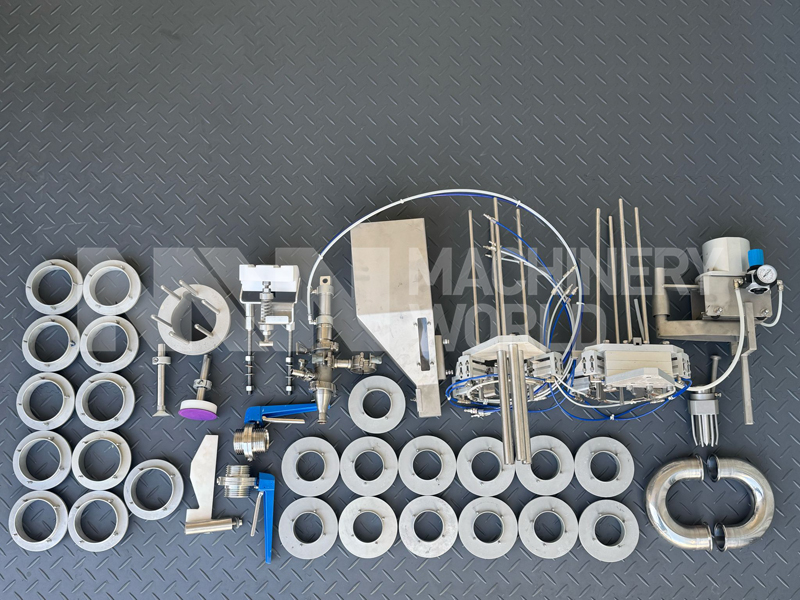

  • Change parts:
  • 64mm diameter / Approx. 125ml (with Heat Seal)
  • 90mm diameter /  Approx. 500ml (with Heat Seal)
  • Number of rows possible: 1
  • Machine stations include: Cup drop, Cup fill, Dry Ingredients Sprinkling, Heat Seal applicator, Lid applicator, Lid closing device & Eject Conveyor.
  • Electrical consumption: 2.5 kW
  • Air consumption: 650 Nl/min
  • Stainless steel construction
  • Fully guarded
  • Voltage: 400V/50Hz/3 Phase
  • Instruction manual supplied
Dimensions
  • Length: 175 cms
  • Width: 135 cms
  • Height: 198 cms
  • Weight: 640 kgs
