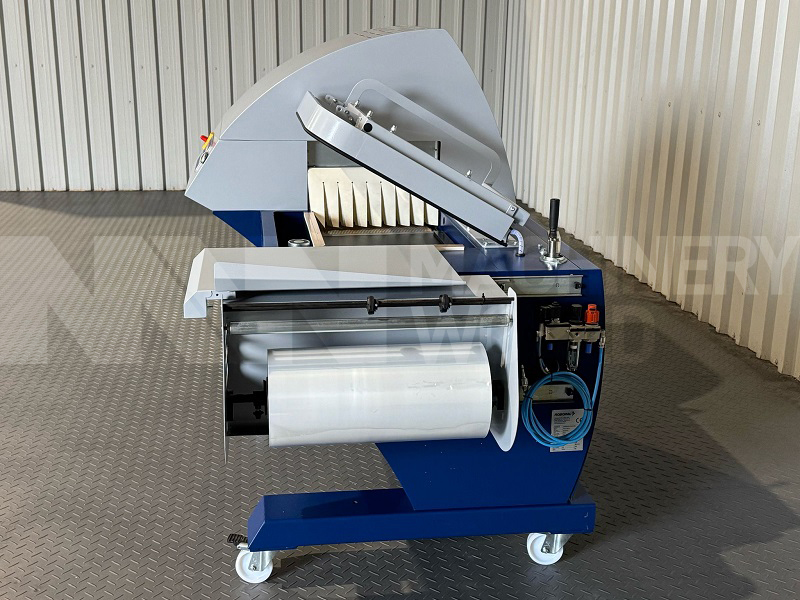

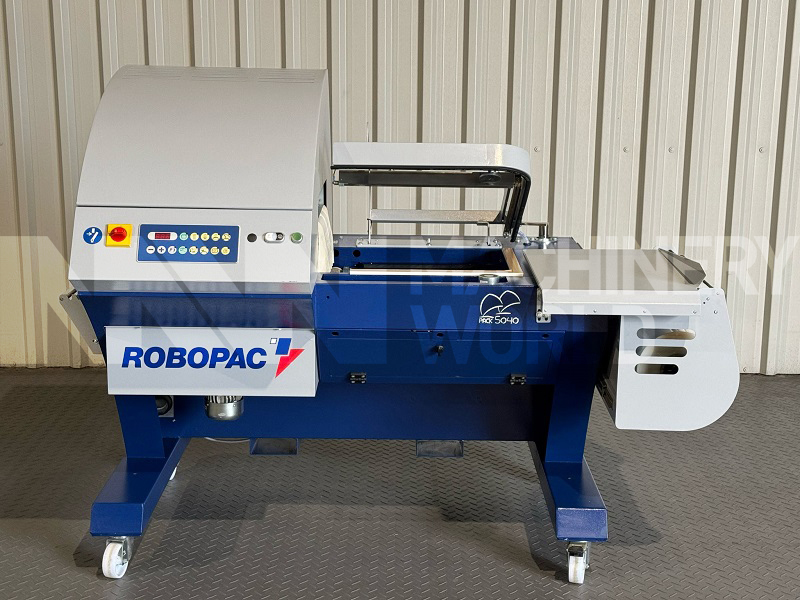

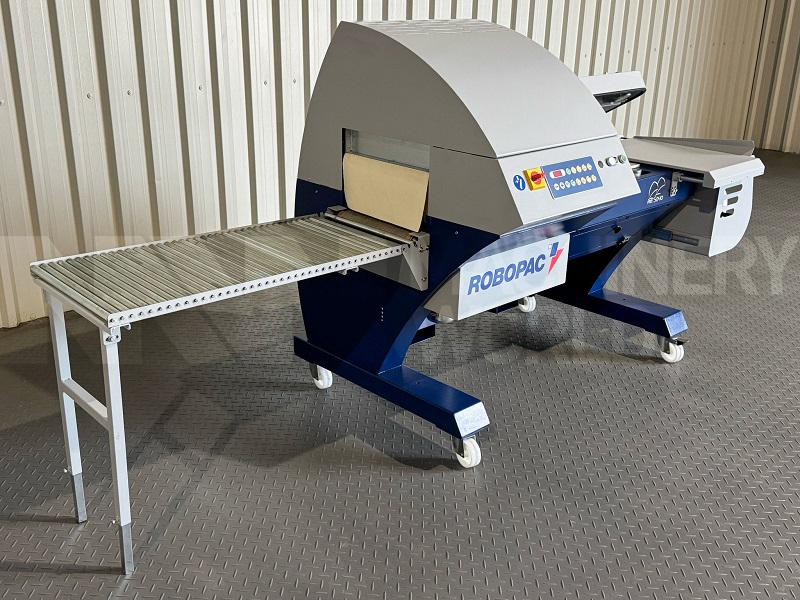

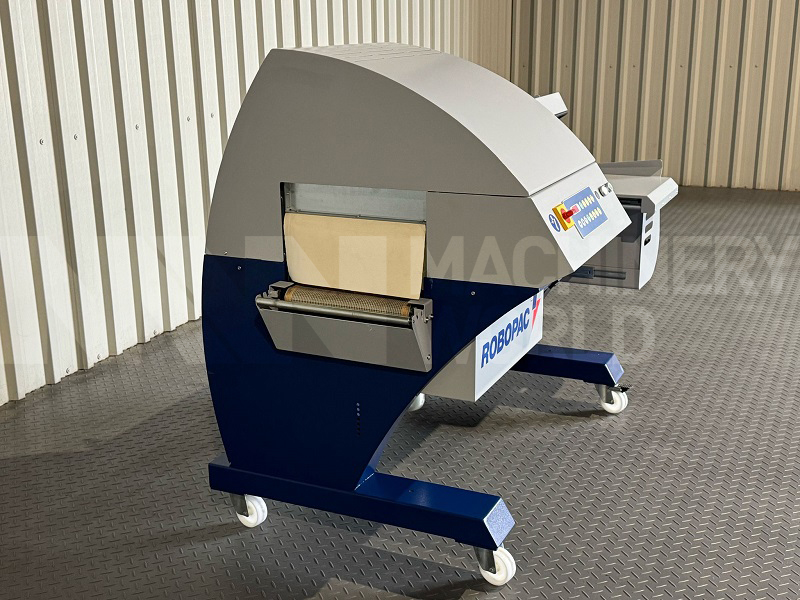

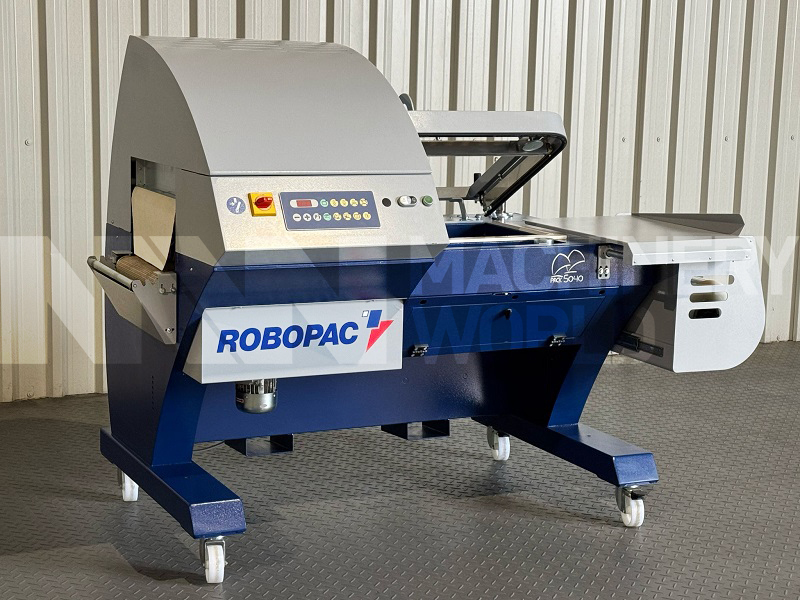

Robopac Pack 5040A Heat Shrink Wrapping Machine with Automatic Sealing Bar Movement (Year 2024)

Description

This is a Used Robopac Pack 5040A Heat Shrink Wrapping Machine. The Robopac Pack 5040A Heat Shrink Wrapping Machine features Automatic Sealing Bar Movement. It boasts a production capacity of approximately 900 packs per hour; however, this figure may fluctuate based on the dimensions of the products processed, the type of film utilized, and the feed in/out rate. Produced in 2024, this Robopac Pack 5040A has never been installed or utilized and is currently available for immediate purchase.

Specification

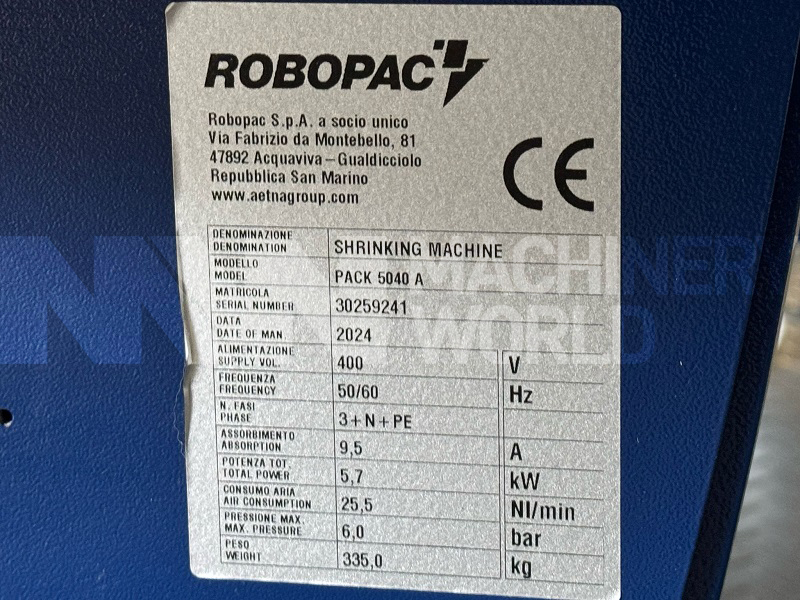

• Make: Robopac S.p.A, San Marino (Europe)
• Model: Pack 5040 A
• Function: Heat Shrinking Machine with Automatic Sealing Bar Movement
• Serial Number: 30259241
• Year of Manufacture: 2024
• Condition: SPARINGLY USED
• Production Capacity: Approx 900 packs per hour (Varies depending on the size of the product being put through, the type of film being used and feed In/Out rate)
• Sealing Conveyor Speed: Upto 43 m/min
• Heating Tunnel Infeed Dimensions: Width 385mm x Height 190mm
• Max Reel Dimensions: 300mm Dia & 500mm Long
• Max Reel Weight: 31kg
• Supply Voltage: 400v
• Frequency: 50/60Hz
• Total Power: 5.7kw
• Air Consumption: 25.5 NI/min
• Max Air Pressure: 6 Bar
• Sealing Bar: Automatic Sealing Bar Movement
• Controls: Fully Integrated Control Panel with PLC and Frequency Inverter for Speed Control
• Finish: Powder Coated Finish

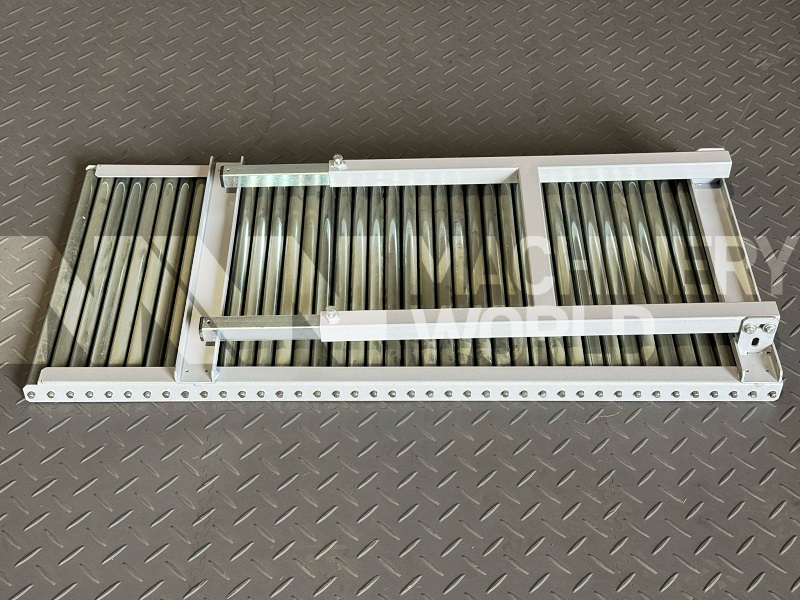

• Conveyor Comes with Feed Out Gravity Roller Conveyor
• Supports: Mounted on Castor Wheels

Product/Box Allowable Dimensions

• Length: 50 (Min) & 450mm (Max)
• Width: 50 (Min) & 350mm (Max)
• Height: 10 (Min) & 190mm (Max)
• Weight: 8kg (max)

Dimensions

• Length: 2232mm
• Depth: 1225mm
• Height: 1446mm
• Weight: Approx 335kgs

Country of Manufacture

Republic of San Marino (Europe)
