Description

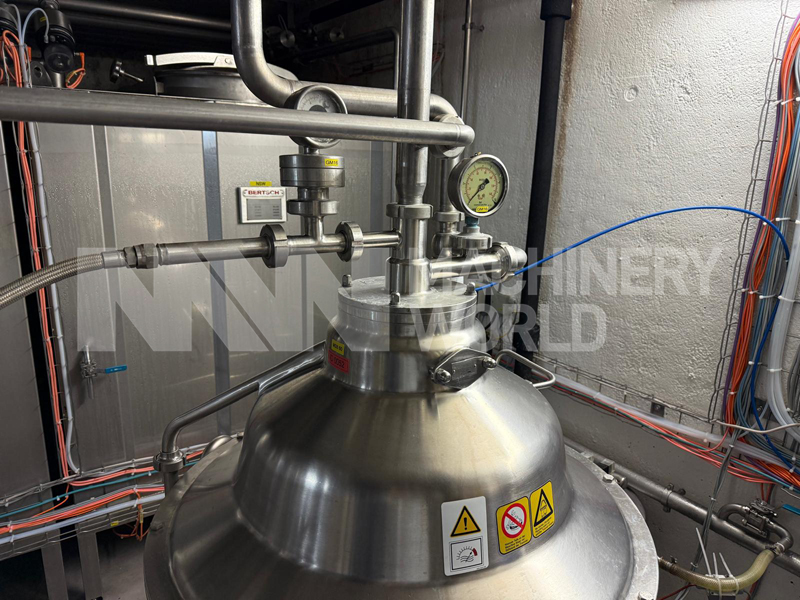

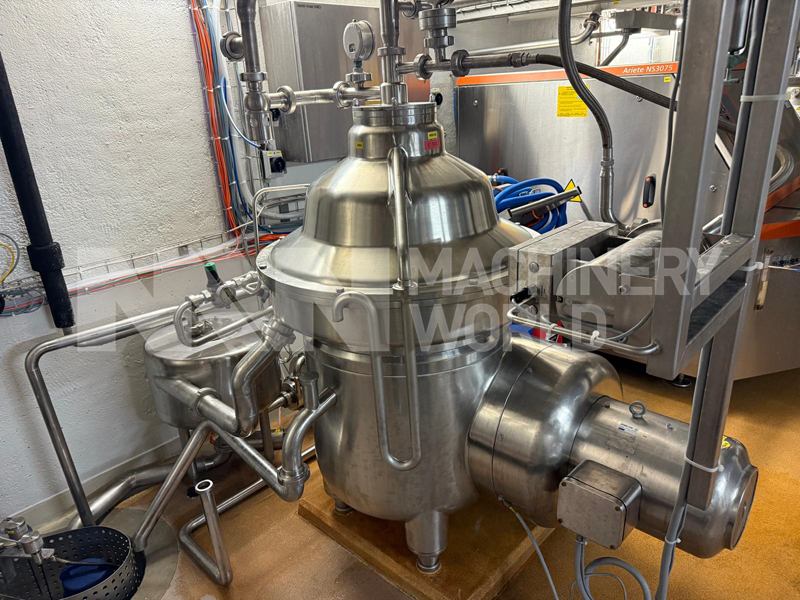

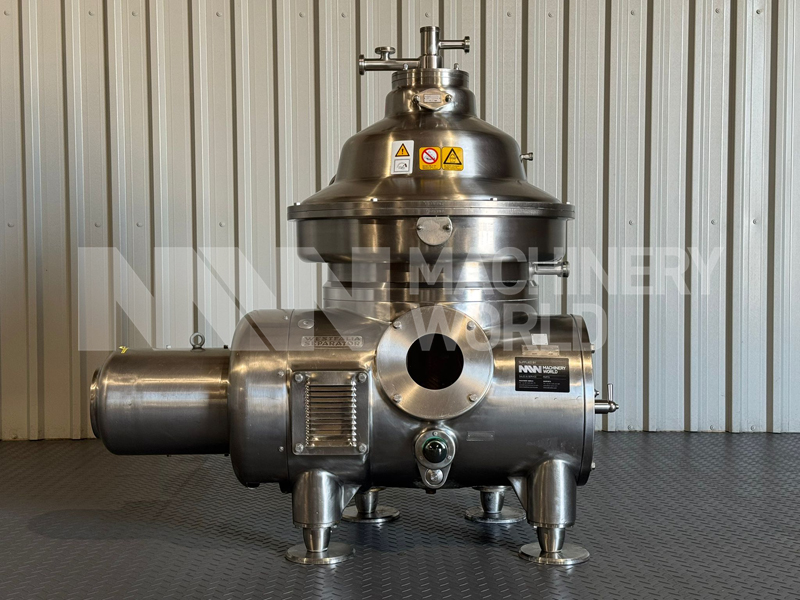

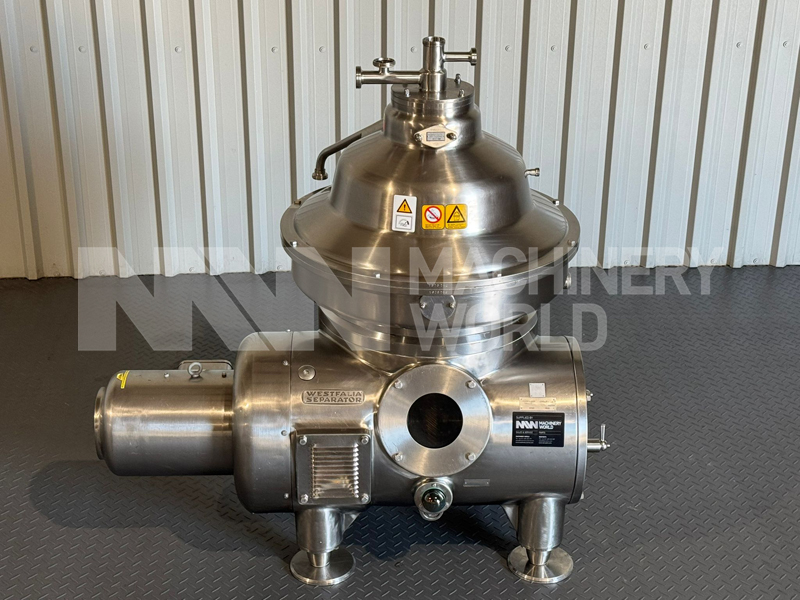

This is a pre-owned GEA Westfalia MSB 60 self-cleaning (automatic de-sludge) milk separator/centrifuge, designed for high-efficiency milk processing with a working capacity of up to 7,000 liters per hour. This machine includes a control panel, base plate and selection of tools.

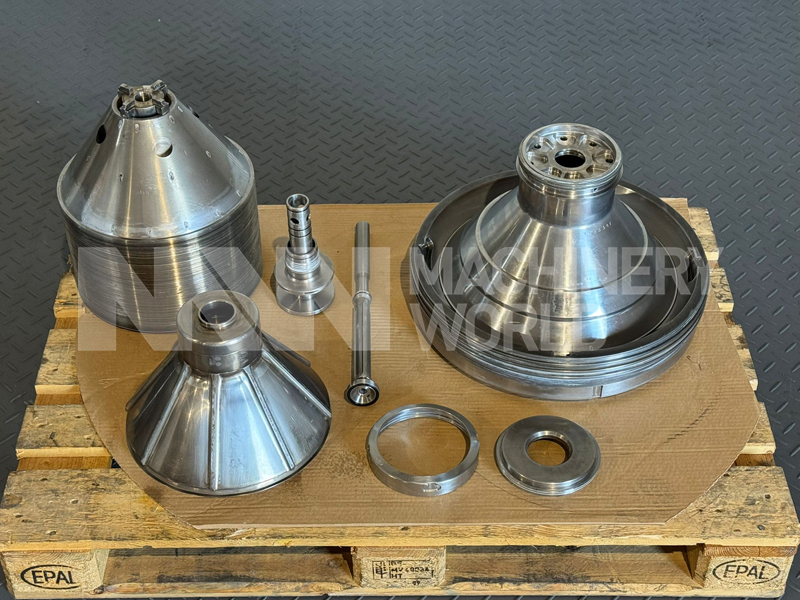

The MSB 60 self-cleaning disc separator differs from solid-wall disc separators in its method of solids discharge. Instead of continuous removal through nozzles, the separated solids are intermittently ejected via openings in the bowl walls, controlled by specialized pistons. This self-cleaning design enhances efficiency and minimizes manual intervention.
These disc separators are suitable for both clarification and separation of fluids, ensuring optimal performance in dairy processing operations.
Features

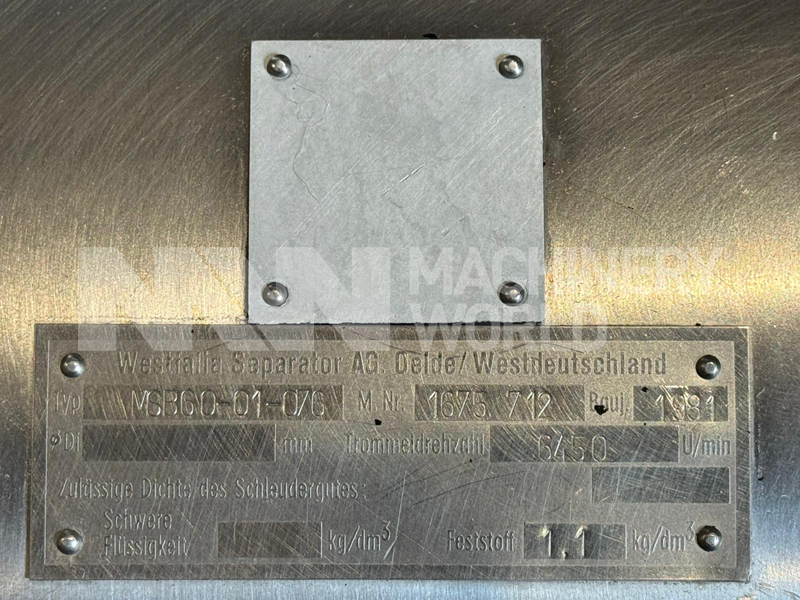

- Manufacturer: GEA Westfalia
- Model: MSB 60-01-076
- Function: Milk Separator

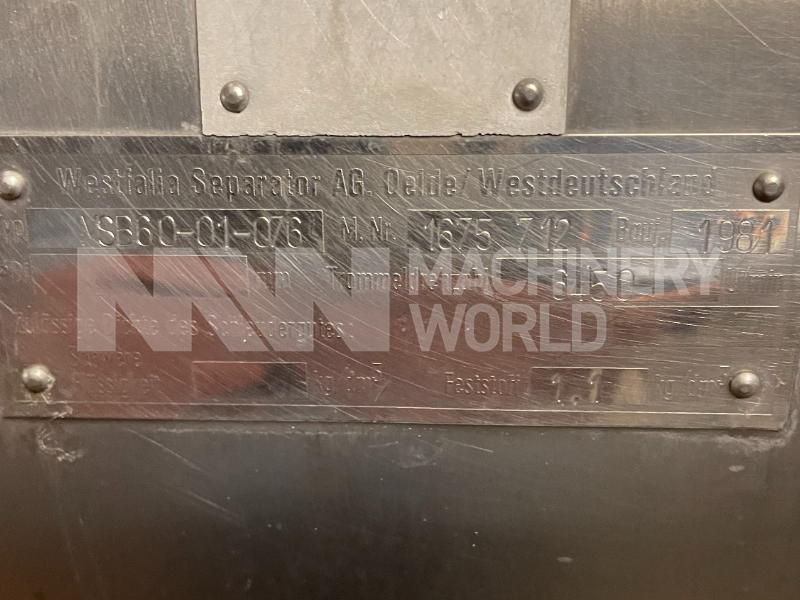

- Serial number: 1675-712
- Capacity: 7,000 litres/hour
- Year of manufacture: 1981
- Complete with tools, base plate and control panel
- Speed: 6450 RPM
- Heavy liquid: 1.0kg/dm3
- Solids: 1.1kg/dm3

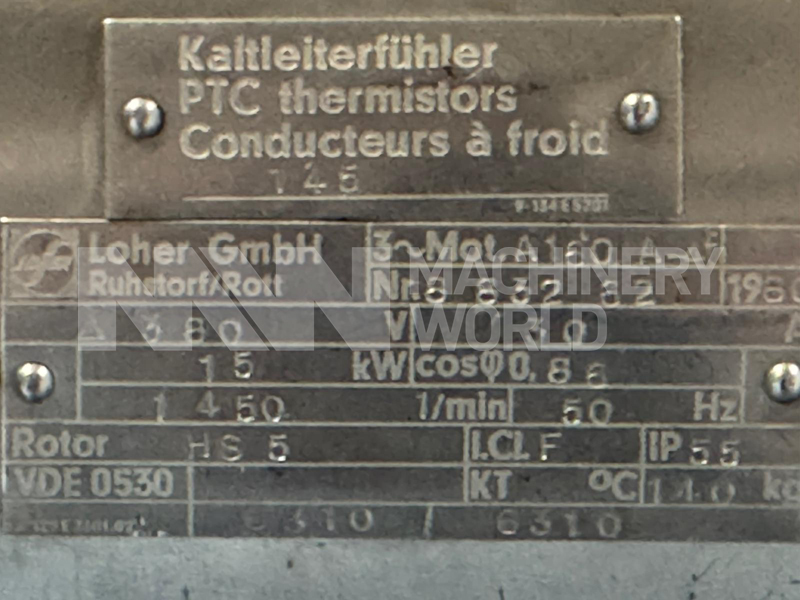

- Motor power: 15 kW
- Electrics: 415V/ 50Hz/ 3Phase
Dimensions
- Length: 173 cms
- Width: 85 cms
- Height: 185 cms
- Weight: 1550 kgs
